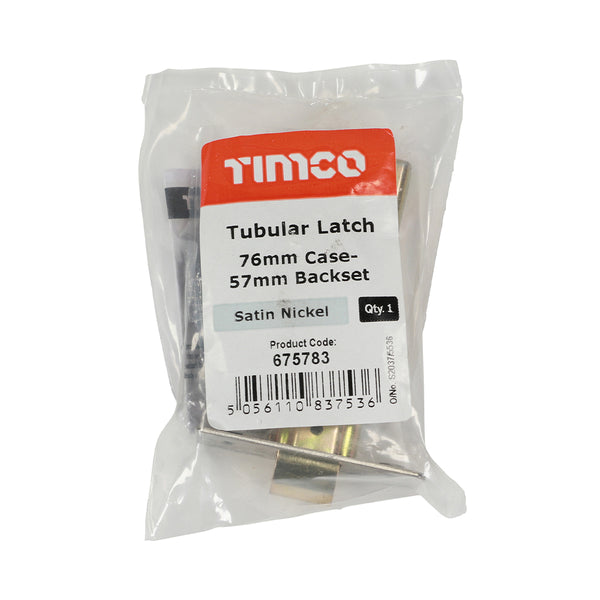

TIMCO Tubular Latch Satin Nickel - 76mm
-
- Product Code
- 675783
-
- Barcode
- 5056110837536
-
- Pack Quantity
- 1 Each
£2.04
inc. VAT
This product is currently unavailable.
Description

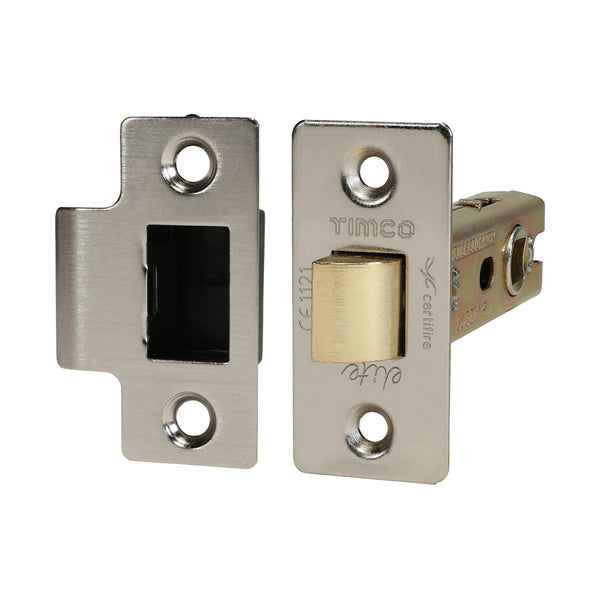

A medium duty tubular latch suitable for use in domestic and commercial applications. The latch should be used with sprung door furniture.
| Backset mm | 57.0 |
| BS EN Classification | NPDM410F-B010 |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Description | A medium duty tubular latch suitable for use in domestic and commercial applications. The latch should be used with sprung door furniture. |
| Faceplate Size H x W mm | 58 x 27 |
| Faceplate Type | Square |
| Finish | Satin Nickel |
| Keep Size H x W mm | 56 x 24 |
| Lock Case Depth mm | 76 |
| Lock Case Height mm | 21 |
| Lock Case Size H x D mm | 21 x 76 |
| Lock Case Width mm | 15 |
| Lock Follower Backset mm | 57.0 |
| No. of CSK Screws | 4 |
| Product Code | 675783 |
| Rec Screw Dia. mm | 4.0 |
| Rec Screw Gauge imp. | 8 |
| Screw Size imp. | 8 x 1 |
| Screw Size mm | 4.0 x 25 |
| Screws Required Per Pair | 4 |
| Size mm | 76 / 57 |
