Insulation Fixings

Insulation Board Fixings for Trade and Construction

Insulation fixings secure insulation boards to masonry, brick, and concrete walls. They work alongside adhesive to keep boards firmly in place. On external walls, they must withstand wind, rain, and temperature changes all year round.

The right fixing depends on three things. First, the type of insulation board. Second, the wall substrate behind it. Third, the thickness of the board being fixed. Get any of these wrong and the board may shift, crack, or pull away from the wall.

TIMCO insulation fixings are designed to anchor insulation to concrete and masonry substrates. The range covers plastic and metal options, with discs and stress plates available separately for wider load distribution.

Types of Insulation Fixings Available in Our Store

These include three product types. Use the filter on the left to narrow your search. Here is what each type does.

Fixing Lengths and Pack Sizes

Choose a fixing length based on the thickness of your insulation board. The fixing must pass through the full board depth and embed securely into the substrate behind. A minimum embedment depth into the substrate is required for safe load transfer. Always check the individual product page for technical data.

All fixings are 8.0mm in diameter. Embedment depth requirements vary by substrate. Always refer to the TIMCO technical data sheet before specifying fixings for structural or external wall insulation (EWI) systems.

How to Choose the Right Insulation Fixing

Start with your board thickness. Then match the fixing length to suit. The fixing needs to pass through the board and embed into the wall behind it. Here are common scenarios and what to use.

Plastic Insulation Fixings vs Metal Insulation Fixings

Both types secure insulation boards to masonry and concrete. They work in a similar way. The key differences are load capacity, thermal performance, and application.

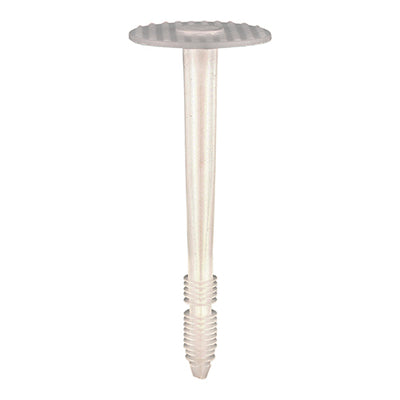

Plastic insulation fixings are lightweight and non-corrosive. They do not rust. The plastic body limits heat transfer through the fixing point. This matters in external wall insulation systems where thermal bridging can reduce overall U-value performance. They suit low to medium load applications on standard masonry walls.

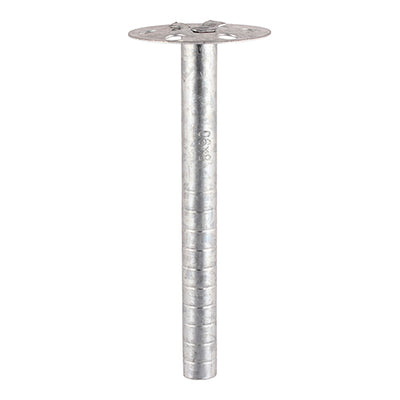

Metal insulation fixings offer higher pull-out strength. They are suited to heavier insulation boards, taller buildings, or sites with higher wind exposure. The zinc coating gives corrosion protection. Metal fixings are often used where greater mechanical load resistance is needed, such as on multi-storey external wall insulation projects.

What Are Insulation Discs and Stress Plates For?

Insulation discs and stress plates sit on the face of the insulation board. The fixing passes through the disc and into the wall. The disc spreads the clamping load over a wider area.

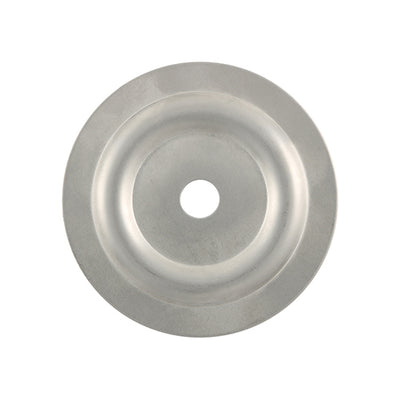

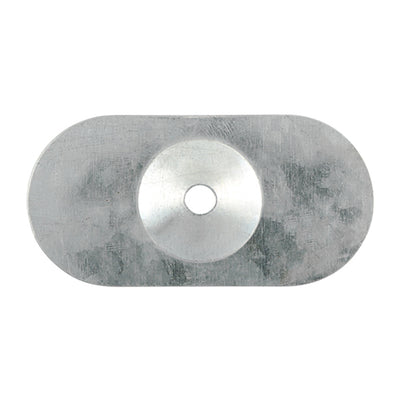

Without a disc, a standard fixing head can pull through softer insulation materials under load. This is especially a risk with mineral wool and lower-density EPS boards. A 70mm metal insulation disc gives a much larger bearing surface. The oval 82 x 40mm stress plate suits tighter spaces or board joints where a round disc would not sit well.

Always check whether discs are needed for your specific insulation board type and substrate. Heavier boards and windier locations generally require more fixing points per square metre and larger disc coverage.

Find the Right Insulation Fixing for Your Project

Use the filters on this page to narrow by product type, material, and length. Check individual product pages for technical data and embedment depth guidance before ordering.

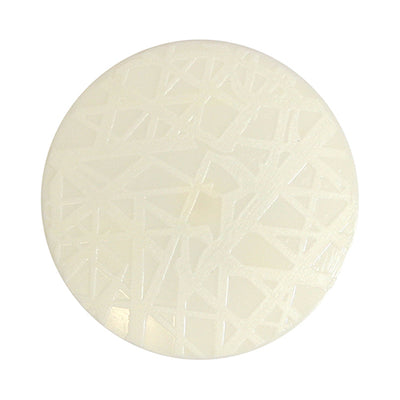

Whether you need plastic insulation fixings for a retrofit EWI project, metal insulation fixings for a heavy-duty external wall system, or discs and cover caps to complete your fixing kit, the full TIMCO range is right here. Next-day delivery is available when you order by 2pm.

Frequently Asked Questions

Related Fixings and Fasteners

Insulation fixings sit within the masonry and cavity wall fixing range at JALFT. If you need fixings for brick, block, or concrete without insulation boards, the masonry and concrete fixings range covers those products.

For cavity wall fixing applications, the cavity fixings range has products designed to span the cavity between wall leaves.
