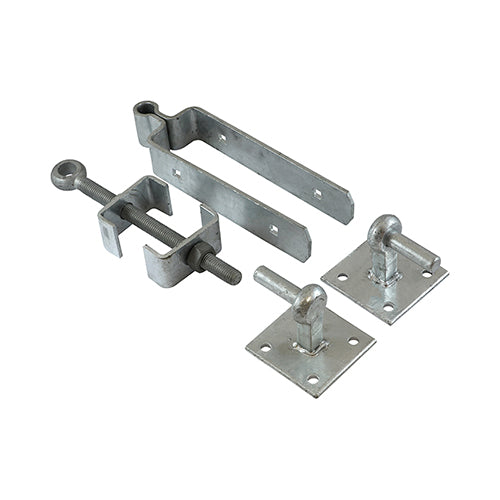

TIMCO Adjustable Gate Hinge Set With Hook On Plate Hot Dipped Galvanised - 600mm

TIMCO Adjustable Gate Hinge Set With Hook On Plate Hot Dipped Galvanised - 600mm

  1. Product Code
    AFHP600G
  2. Barcode
    5055893361184
  3. Pack Quantity
    1 Each
£27.82 inc. VAT

Description

Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending

Carriage Bolt Size mm M10 x 95
Coach Screw Size mm M10 x 65
Contents 600mm Top Strap (Qty 1) ?M19 x 250mm Adjustable Bottom Fitting (Qty 1) ?100 x 100mm Hook on Plates (Qty 2) ?M10 x 95mm Carriage Bolts (Qty 3) ?M10 x 65mm Coach Screws (Qty 8) ?M10 Full Hex Nuts (Qty 3) ?M10 Washers (Qty 3)
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Description Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending
Finish Hot Dipped Galvanised
Gate Eye Dia. x L mm M19 x 250
Heel Clip Size L x W x D mm 86 x 50 x 32
Hook Plate Size L x W mm 100 x 100
Material Carbon Steel
No. of Carriage Bolts 3
No. of Coach Screws 8
No. of Nuts 3
No. of Washers 3
Nut Size mm M10
Nut Type Hex Full
Pack Dimensions L x W x H mm 178 x 30 x 762
Pack Weight kg 6.800
Pin Dia. inch
Pin Dia. mm 19.0
Product Code AFHP600G
Strap Thickness mm 6.0
To Fit Carriage Bolt Dia. mm M10
To Suit Gate Thickness inch 3
To Suit Gate Thickness mm 75
To Suit Gate Width ft 9 - 12
To Suit Gate Width mm 2700 - 3600
Top Strap L inch 24
Top Strap L mm 600
Washer Size mm M10
Washer Type Form A
