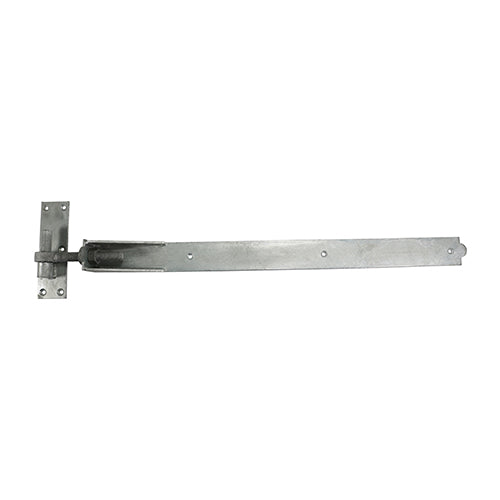

TIMCO Adjustable Band & Hook on Plates Hinges Hot Dipped Galvanised - 600mm (2pcs)

TIMCO Adjustable Band & Hook on Plates Hinges Hot Dipped Galvanised - 600mm (2pcs)

  1. Product Code
    ABH600G
  2. Barcode
    5055893360552
  3. Pack Quantity
    2 Pieces
£26.94 inc. VAT

Description

Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.

Band Length inch 24
Band Length mm 600
Band Thickness mm 5.0
Band Width mm 50
Carriage Bolt Size mm M12 x 65
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Description Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Finish Hot Dipped Galvanised
Hook Plate Size L x W mm 160 x 50
Included Items M12 x 65mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 14
No. of Nuts 2
No. of Screw Holes 14
No. of Washers 2
Nut Size mm M12
Nut Type Hex Full
Pack Dimensions L x W x H mm 178 x 30 x 610
Pack Weight kg 5.790
Pin Dia. inch 3/4
Pin Dia. mm 19.0
Product Code ABH600G
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M12
To Suit Gate Width mm 1200 - 1800
Washer Size mm M12
Washer Type Form A
