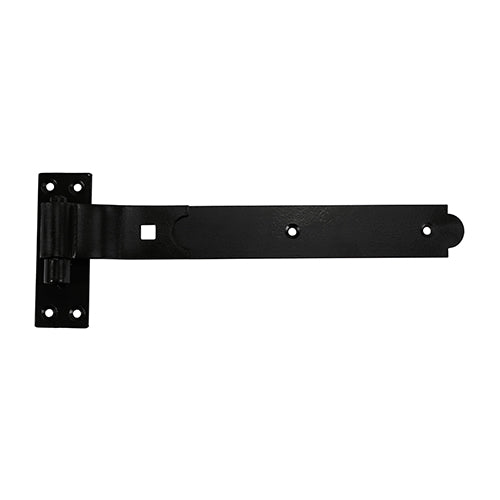

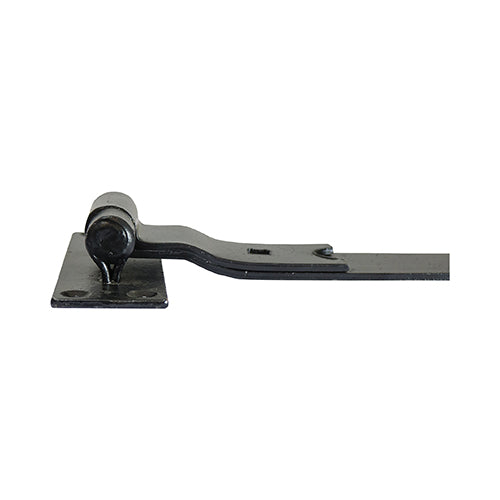

TIMCO Cranked Band & Hook On Plates Hinges Black - 250mm (2pcs)
TIMCO Cranked Band & Hook On Plates Hinges Black - 250mm (2pcs)
TIMCO Cranked Band & Hook On Plates Hinges Black - 250mm (2pcs)
TIMCO Cranked Band & Hook On Plates Hinges Black - 250mm (2pcs)

TIMCO Cranked Band & Hook On Plates Hinges Black - 250mm (2pcs)

  1. Product Code
    HBC250B
  2. Barcode
    5055893360361
  3. Pack Quantity
    2 Pieces
£10.09 inc. VAT

This product is currently unavailable.

Description

The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre

Band Length inch 10
Band Length mm 250
Band Thickness mm 4.8
Band Width mm 40
Carriage Bolt Size mm M10 x 100
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 6.0 x 40
Description The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
Finish Epoxy Black
Hook Plate Size L x W mm 115 x 40
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 12)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 12
No. of Nuts 2
No. of Screw Holes 12
No. of Washers 2
Nut Size mm M10
Nut Type Hex Full
Pack Dimensions L x W x H mm 115 x 30 x 406
Pack Weight kg 1.520
Pin Dia. inch
Pin Dia. mm 12.0
Product Code HBC250B
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M10
To Suit Gate Width mm 500 - 750
Washer Size mm M10
Washer Type Form A
