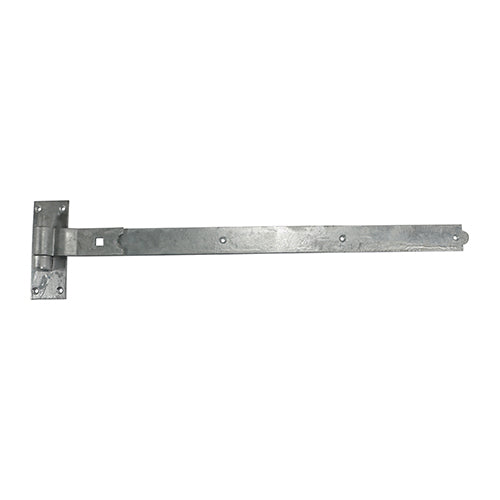

TIMCO Cranked Band & Hook On Plates Hinges Hot Dipped Galvanised - 900mm (2pcs)
TIMCO Cranked Band & Hook On Plates Hinges Hot Dipped Galvanised - 900mm (2pcs)
TIMCO Cranked Band & Hook On Plates Hinges Hot Dipped Galvanised - 900mm (2pcs)
TIMCO Cranked Band & Hook On Plates Hinges Hot Dipped Galvanised - 900mm (2pcs)

TIMCO Cranked Band & Hook On Plates Hinges Hot Dipped Galvanised - 900mm (2pcs)

  1. Product Code
    HBC900G
  2. Barcode
    5055893360354
  3. Pack Quantity
    2 Pieces
£36.20 inc. VAT

This product is currently unavailable.

Description

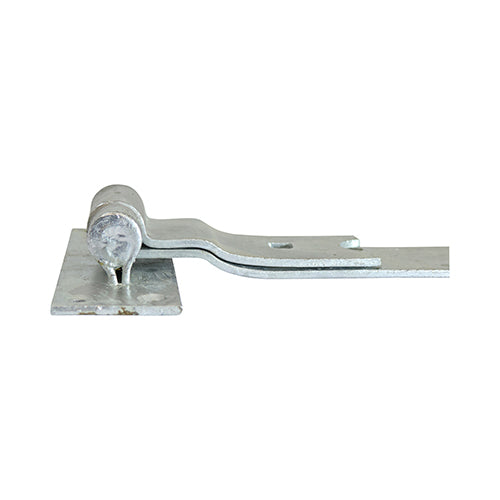

The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre

Band Length inch 36
Band Length mm 900
Band Thickness mm 5.4
Band Width mm 50
Carriage Bolt Size mm M10 x 100
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Description The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
Finish Hot Dipped Galvanised
Hook Plate Size L x W mm 200 x 75
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 16)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 16
No. of Nuts 2
No. of Screw Holes 16
No. of Washers 2
Nut Size mm M10
Nut Type Hex Full
Pack Dimensions L x W x H mm 152 x 30 x 1066
Pack Weight kg 6.700
Pin Dia. inch
Pin Dia. mm 19.0
Product Code HBC900G
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M10
To Suit Gate Width mm 1800 - 2700
Washer Size mm M10
Washer Type Form A
