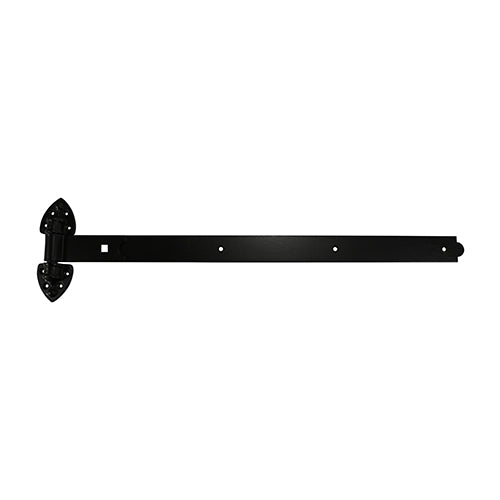

TIMCO Heavy Duty Reversible Hinges Black - 1050mm

TIMCO Heavy Duty Reversible Hinges Black - 1050mm

  1. Product Code
    HRH1050B
  2. Barcode
    5055893360682
  3. Pack Quantity
    1 Each
£56.59 inc. VAT

Description

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Band Length inch 42
Band Length mm 1050
Band Thickness mm 5.6
Band Width mm 50
Carriage Bolt Size mm M12 x 100
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 6.0 x 40
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Finish Epoxy Black
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 26)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 26
No. of Nuts 2
No. of Screw Holes 30
No. of Washers 2
Nut Size mm M12
Nut Type Hex Full
Pack Dimensions L x W x H mm 152 x 30 x 1219
Pack Weight kg 6.380
Pin Dia. inch
Pin Dia. mm 19.0
Product Code HRH1050B
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M12
To Suit Gate Width mm 2100 - 3150
Washer Size mm M12
Washer Type Form A
