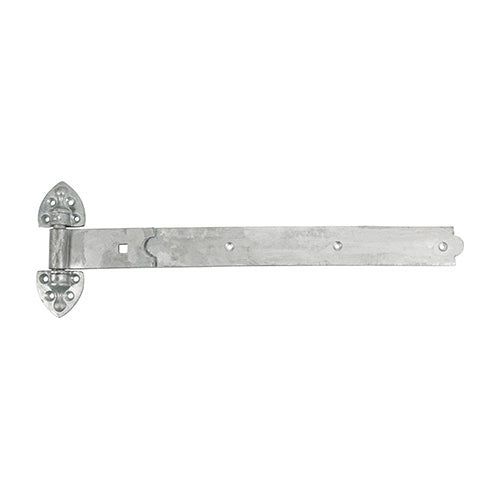

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 350mm

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 350mm

  1. Product Code
    HRH350G
  2. Barcode
    5055893360729
  3. Pack Quantity
    1 Each
£15.98 inc. VAT

Description

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Band Length inch 14
Band Length mm 350
Band Thickness mm 4.8
Band Width mm 40
Carriage Bolt Size mm M10 x 100
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Finish Hot Dipped Galvanised
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 20)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 20
No. of Nuts 2
No. of Screw Holes 22
No. of Washers 2
Nut Size mm M10
Nut Type Hex Full
Pack Dimensions L x W x H mm 160 x 30 x 395
Pack Weight kg 2.030
Pin Dia. inch
Pin Dia. mm 12.0
Product Code HRH350G
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M10
To Suit Gate Width mm 700 - 1050
Washer Size mm M10
Washer Type Form A
