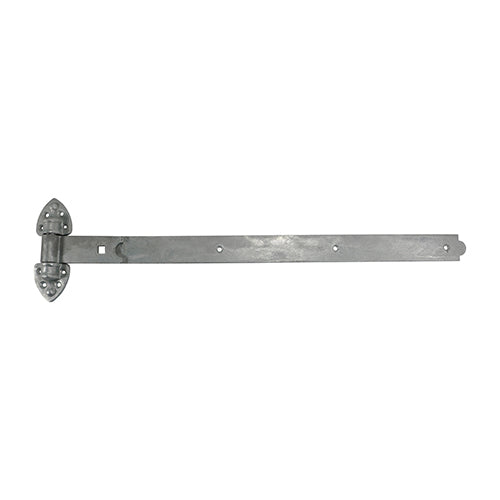

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 900mm

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 900mm

  1. Product Code
    HRH900G
  2. Barcode
    5055893360781
  3. Pack Quantity
    1 Each
£50.40 inc. VAT

Description

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Band Length inch 36
Band Length mm 900
Band Thickness mm 5.6
Band Width mm 50
Carriage Bolt Size mm M12 x 100
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Finish Hot Dipped Galvanised
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 24)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 24
No. of Nuts 2
No. of Screw Holes 30
No. of Washers 2
Nut Size mm M12
Nut Type Hex Full
Pack Dimensions L x W x H mm 152 x 30 x 1066
Pack Weight kg 5.920
Pin Dia. inch
Pin Dia. mm 19.0
Product Code HRH900G
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M12
To Suit Gate Width mm 1800 - 2700
Washer Size mm M12
Washer Type Form A
