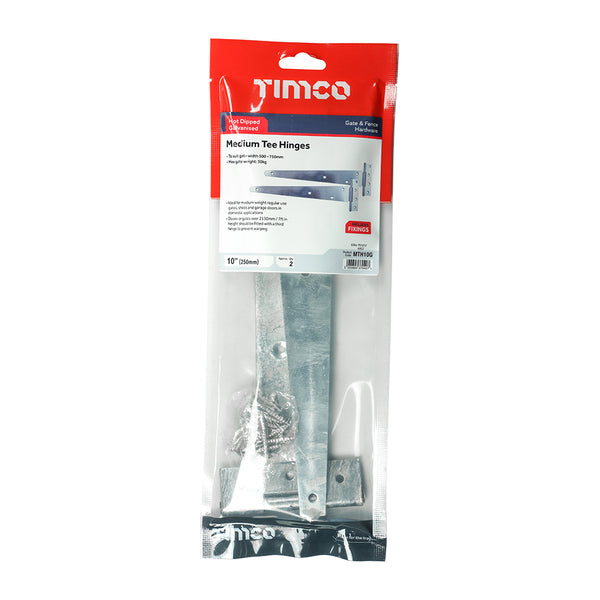

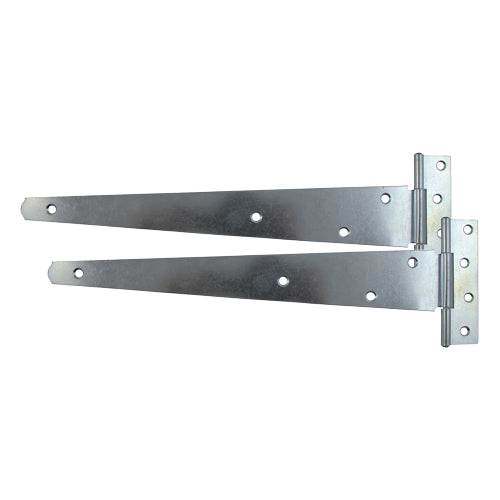

TIMCO Medium Tee Hinges Hot Dipped Galvanised - 10"
-
- Product Code
- MTH10G
-
- Barcode
- 5055893370407
-
- Pack Quantity
- 1 Each
£3.84
inc. VAT
This product is currently unavailable.
Description
Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
| Band Length inch | 10 |
| Band Length mm | 250 |
| Band Thickness mm | 1.8 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 4.0 x 30 |
| Description | Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included. |
| Finish | Hot Dipped Galvanised |
| Included Items | 4.0 x 30mm Countersunk Screws (Qty 14) |
| Knuckle Dia. mm | 8.5 |
| Leaf Size L x W mm | 90 x 25 |
| Material | Carbon Steel |
| Max Gate Weight kg | 30 |
| No. of CSK Screws | 14 |
| No. of Screw Holes | 14 |
| Pack Dimensions L x W x H mm | 40 x 120 x 330 |
| Pack Weight kg | 0.420 |
| Product Code | MTH10G |
| Rec Screw Dia. mm | 4.0 |
| Rec Screw Gauge imp. | 8 |
| To Suit Gate Width mm | 500 - 750 |
