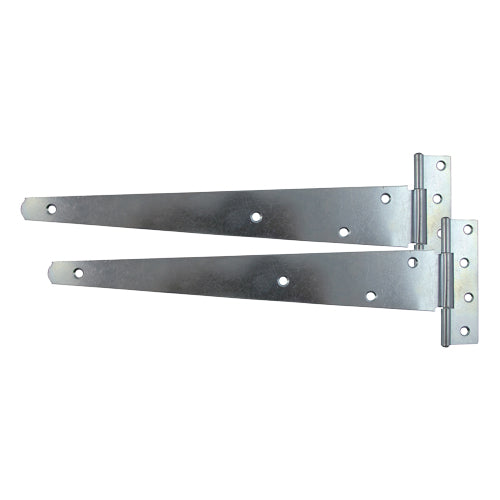

TIMCO Medium Tee Hinges Zinc - 16

TIMCO Medium Tee Hinges Zinc - 16"

  1. Product Code
    MTH16Z
  2. Barcode
    5055893370384
  3. Pack Quantity
    1 Each
£6.48 inc. VAT

Description

Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Band Length inch 16
Band Length mm 400
Band Thickness mm 2.2
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 5.0 x 30
Description Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Finish Zinc
Included Items 5.0 x 30mm Countersunk Screws (Qty 16)
Knuckle Dia. mm 11.5
Leaf Size L x W mm 128 x 30
Material Carbon Steel
Max Gate Weight kg 40
No. of CSK Screws 18
No. of Screw Holes 18
Pack Dimensions L x W x H mm 40 x 180 x 540
Pack Weight kg 0.910
Product Code MTH16Z
Rec Screw Dia. mm 5.0
Rec Screw Gauge imp. 10
To Suit Gate Width mm 800 - 1200
