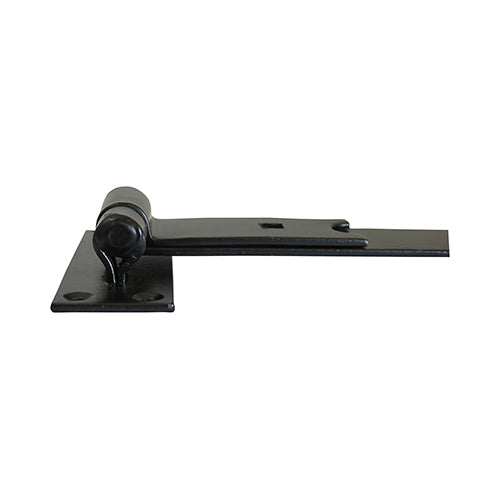

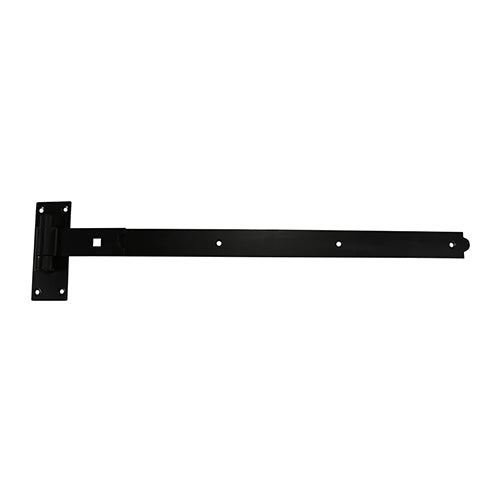

TIMCO Straight Band & Hook On Plates Hinges Black - 900mm (2pcs)

TIMCO Straight Band & Hook On Plates Hinges Black - 900mm (2pcs)

Product Code

HBS900B
Barcode

5055893360262
Pack Quantity

2 Pieces

£36.20 inc. VAT

Description

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Band Length inch	36
Band Length mm	900
Band Thickness mm	5.4
Band Width mm	50
Carriage Bolt Size mm	M10 x 100
Corrosion Rating	2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm	6.0 x 40
Description	The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Finish	Epoxy Black
Hook Plate Size L x W mm	200 x 75
Included Items	M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 16)
Material	Carbon Steel
No. of Bolt Holes	2
No. of Carriage Bolts	2
No. of CSK Screws	16
No. of Nuts	2
No. of Screw Holes	16
No. of Washers	2
Nut Size mm	M10
Nut Type	Hex Full
Pack Dimensions L x W x H mm	152 x 30 x 1066
Pack Weight kg	6.480
Pin Dia. inch
Pin Dia. mm	19.0
Product Code	HBS900B
Rec Screw Dia. mm	6.0
Rec Screw Gauge imp.	12
To Fit Carriage Bolt Dia. mm	M10
To Suit Gate Width mm	1800 - 2700
Washer Size mm	M10
Washer Type	Form A
