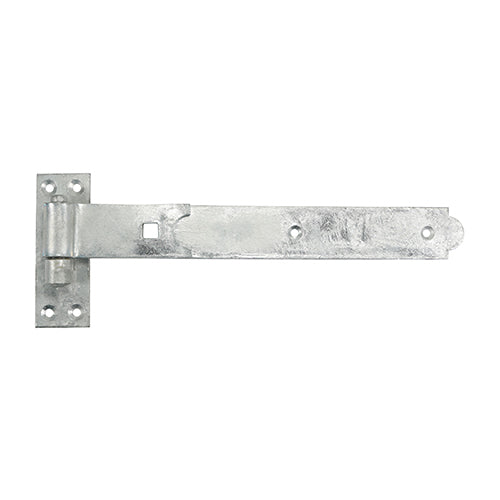

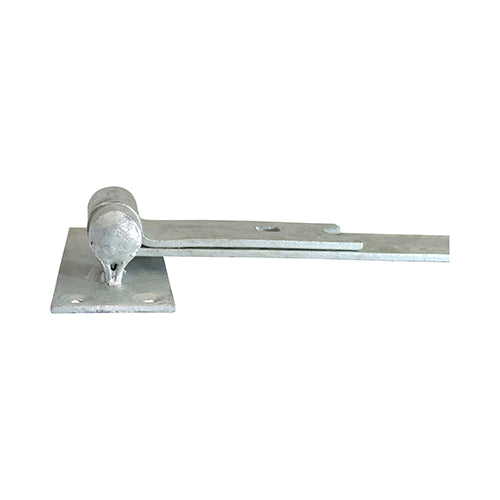

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 250mm (2pcs)
TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 250mm (2pcs)
TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 250mm (2pcs)
TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 250mm (2pcs)

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 250mm (2pcs)

  1. Product Code
    HBS250G
  2. Barcode
    5055893360095
  3. Pack Quantity
    2 Pieces
£10.09 inc. VAT

This product is currently unavailable.

Description

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Band Length inch 10
Band Length mm 250
Band Thickness mm 4.8
Band Width mm 40
Carriage Bolt Size mm M10 x 100
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Finish Hot Dipped Galvanised
Hook Plate Size L x W mm 115 x 40
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 12)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 12
No. of Nuts 2
No. of Screw Holes 12
No. of Washers 2
Nut Size mm M10
Nut Type Hex Full
Pack Dimensions L x W x H mm 115 x 30 x 406
Pack Weight kg 1.560
Pin Dia. inch
Pin Dia. mm 12.0
Product Code HBS250G
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M10
To Suit Gate Width mm 500 - 750
Washer Size mm M10
Washer Type Form A
