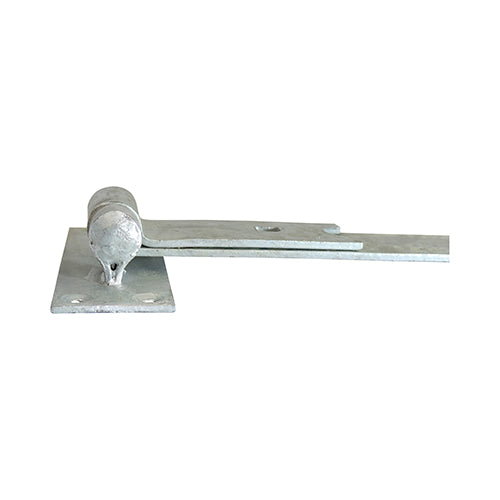

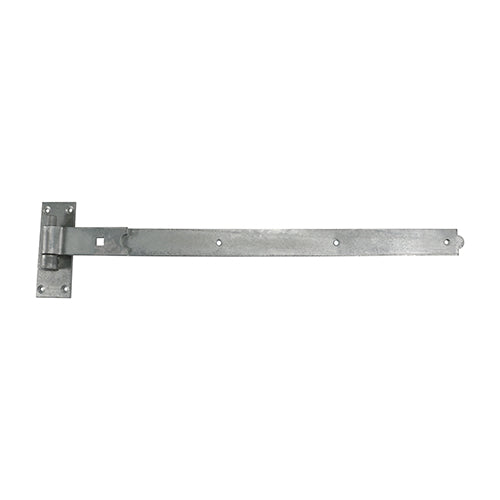

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 750mm (2pcs)

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 750mm (2pcs)

Product Code

HBS750G
Barcode

5055893360163
Pack Quantity

2 Pieces

£29.77 inc. VAT

Description

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Band Length inch	30
Band Length mm	750
Band Thickness mm	5.4
Band Width mm	50
Carriage Bolt Size mm	M10 x 100
Corrosion Rating	4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm	6.0 x 40
Description	The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Finish	Hot Dipped Galvanised
Hook Plate Size L x W mm	200 x 75
Included Items	M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Material	Carbon Steel
No. of Bolt Holes	2
No. of Carriage Bolts	2
No. of CSK Screws	14
No. of Nuts	2
No. of Screw Holes	14
No. of Washers	2
Nut Size mm	M10
Nut Type	Hex Full
Pack Dimensions L x W x H mm	152 x 30 x 914
Pack Weight kg	5.660
Pin Dia. inch
Pin Dia. mm	19.0
Product Code	HBS750G
Rec Screw Dia. mm	6.0
Rec Screw Gauge imp.	12
To Fit Carriage Bolt Dia. mm	M10
To Suit Gate Width mm	1500 - 2250
Washer Size mm	M10
Washer Type	Form A
