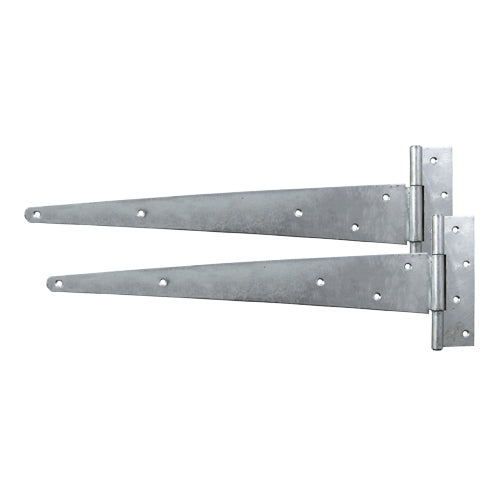

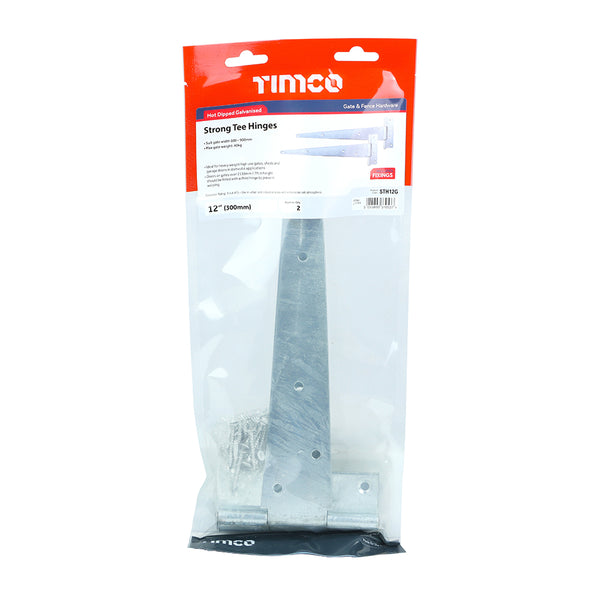

TIMCO Strong Tee Hinges Hot Dipped Galvanised - 12"
-
- Product Code
- STH12G
-
- Barcode
- 5055893370537
-
- Pack Quantity
- 1 Each
£5.64
inc. VAT
This product is currently unavailable.
Description
Ideal for heavy weight high use gates, sheds and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
| Band Length inch | 12 |
| Band Length mm | 300 |
| Band Thickness mm | 2.3 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 4.0 x 30 |
| Description | Ideal for heavy weight high use gates, sheds and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included. |
| Finish | Hot Dipped Galvanised |
| Included Items | 4.0 x 30mm Countersunk Screws (Qty 18) |
| Knuckle Dia. mm | 12.0 |
| Leaf Size L x W mm | 115 x 30 |
| Material | Carbon Steel |
| Max Gate Weight kg | 40 |
| No. of CSK Screws | 18 |
| No. of Screw Holes | 18 |
| Pack Dimensions L x W x H mm | 40 x 160 x 390 |
| Pack Weight kg | 0.770 |
| Product Code | STH12G |
| Rec Screw Dia. mm | 4.0 |
| Rec Screw Gauge imp. | 8 |
| To Suit Gate Width mm | 600 - 900 |
