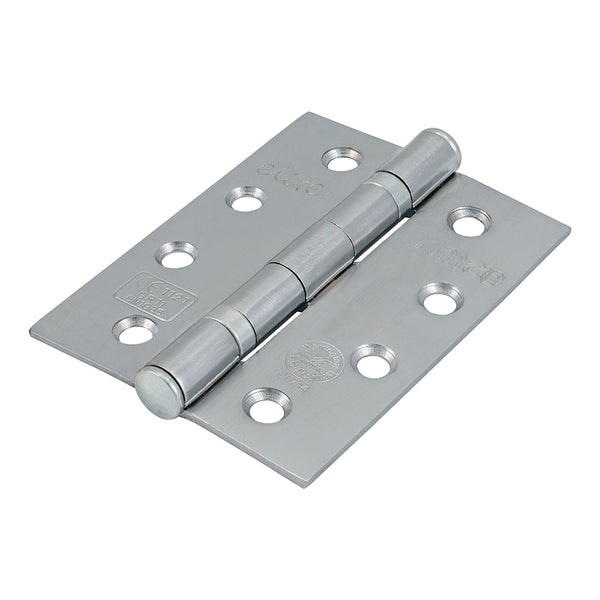

TIMCO Ball Bearing Hinges Grade 11 Steel Satin Chrome - 102 x 76 x 2.7 (2pcs)
-
- Product Code
- 334040
-
- Barcode
- 5056110836607
-
- Pack Quantity
- 2 Pieces
£4.70
inc. VAT
This product is currently unavailable.
Description
Designed for use on standard internal residential doors, including heavy 30 & 60 minute fire doors weighing up to 80kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic.
| BS EN Classification | 374113011 |
| CE Standard Web | BS EN 1935:2002 |
| Certifire Number | CF714 |
| Corner Type | Square |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Description | Designed for use on standard internal residential doors, including heavy 30 & 60 minute fire doors weighing up to 80kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic. |
| Finish | Satin Chrome |
| Fire Rating | 30 & 60 Minutes |
| Grade | 11 |
| Hole Dia. mm | 7.2 |
| Knuckle Dia. mm | 12.5 |
| Knuckle Type | Ball Bearing |
| Length inch | 4 |
| Length mm | 102 |
| Material | Carbon Steel |
| Max Door Weight kg | 80 |
| No. of CSK Screws | 16 |
| Open Width mm | 76 |
| Pack Dimensions L x W x H mm | 160 x 55 x 25 |
| Pack Weight kg | 0.48 |
| Product Code | 334040 |
| Rec Screw Dia. mm | 5.0 |
| Rec Screw Gauge imp. | 10 |
| Screw Size imp. | 10 x 1 |
| Screw Size mm | 5.0 x 30 |
| Screws Required Per Pair | 16 |
| Size L x W mm | 102 x 76 |
| Thickness mm | 2.7 |
