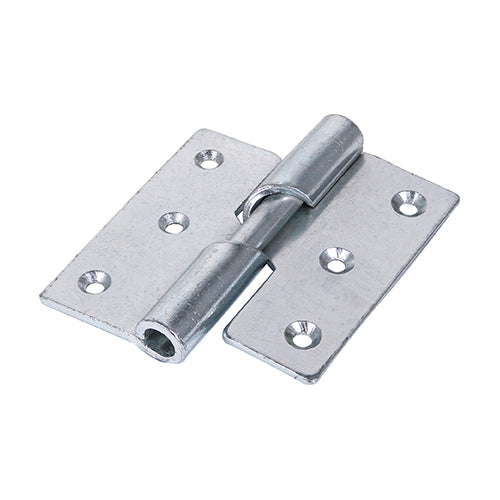

TIMCO Rising Butt Hinges Left Hand Steel Silver - 75 x 72 (2pcs)
-
- Product Code
- 434910
-
- Barcode
- 5056110808901
-
- Pack Quantity
- 2 Pieces
£3.72
inc. VAT
This product is currently unavailable.
Description
Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do
| Corner Type | Square |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Description | Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do |
| Finish | Zinc |
| Hole Dia. mm | 4.60 |
| Knuckle Dia. mm | 14.0 |
| Knuckle Type | Plain |
| Length inch | 3 |
| Length mm | 75 |
| Material | Steel |
| Max Door Weight kg | 30 |
| Open Direction | Left |
| Open Width mm | 72 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.340 |
| Pattern | 466 |
| Product Code | 434910 |
| Rec Screw Dia. mm | 4.0 |
| Rec Screw Gauge imp. | 8 |
| Screws Required Per Pair | 12 |
| Size L x W mm | 75 x 72 |
| Thickness mm | 2.5 |
