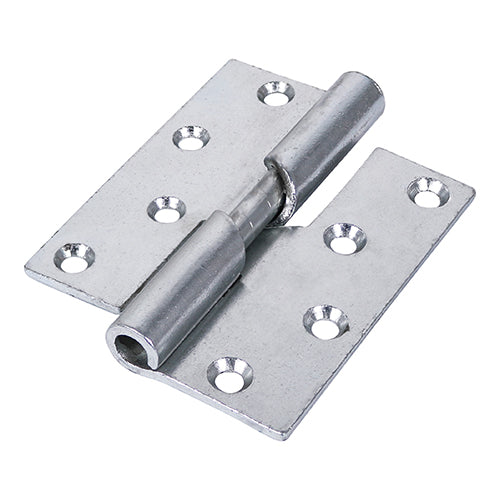

TIMCO Rising Butt Hinges Right Hand Steel Silver - 100 x 86 (2pcs)
-
- Product Code
- 434792
-
- Barcode
- 5056110808932
-
- Pack Quantity
- 2 Pieces
This product is currently unavailable.
Description
The TIMCO 100mm rising butt hinges are designed for smooth and reliable door movement in homes and light commercial spaces. Made from strong steel with a silver zinc finish, these Right Hand Rising Butt Hinges measure 100 x 86mm and are ideal for lifting doors slightly as they open. These stainless steel rising butt hinges are a practical choice for rooms where doors need extra floor clearance.
Built from durable steel, these 100mm rising butt hinges are made to handle regular daily use while helping resist wear and rust in occasionally damp areas. The strong design supports doors up to 40kg, while the smooth rising action helps doors open more easily and comfortably. Easy to fit and long-lasting, they offer great value for both repairs and new door installations.
| Corner Type | Square |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Description | Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do |
| Finish | Zinc |
| Hole Dia. mm | 6.90 |
| Knuckle Dia. mm | 15.5 |
| Knuckle Type | Plain |
| Length inch | 4 |
| Length mm | 100 |
| Material | Steel |
| Max Door Weight kg | 40 |
| Open Direction | Right |
| Open Width mm | 86 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.560 |
| Pattern | 466 |
| Product Code | 434792 |
| Rec Screw Dia. mm | 5.0 |
| Rec Screw Gauge imp. | 10 |
| Screws Required Per Pair | 16 |
| Size L x W mm | 100 x 86 |
| Thickness mm | 3.0 |
