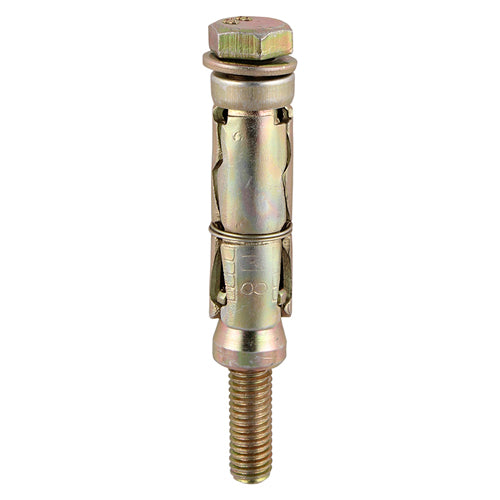

TIMCO Shield Anchors Loose Bolt Gold - M8:10L (M8 x 60) (26pcs)
-
- Product Code
- 0810LSHB
-
- Barcode
- 5055331820914
-
- Pack Quantity
- 26 Pieces
£10.38
inc. VAT
This product is currently unavailable.
Description
Ideal for fixing through the fixture once the shield has been installed into substrate.
| Bolt Length mm | 60 |
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Description | Ideal for fixing through the fixture once the shield has been installed into substrate. |
| Drill Hole Dia. mm | 14.0 |
| Edge Distance mm | 75 |
| Finish | Zinc & Yellow |
| Fixture Hole Diameter mm | 10.0 |
| Material | Carbon Steel |
| Max Fixture Thickness mm | 10 |
| Min Drill Hole Depth mm | 60 |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.260 |
| Point Type | B Point |
| Product Code | 0810LSHB |
| Shield Length mm | 50 |
| Size Thread Dia. x L mm | M8 x 60 |
| Socket Size mm | 13 |
| Substrates | Concrete, Brick, Stone |
| Thread Dia. mm | M8 |
| Thread Type | Metric |
