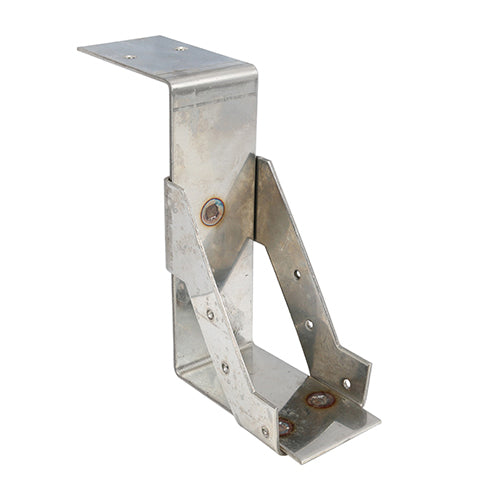

TIMCO Masonry Joist Hangers A2 Stainless Steel - 47 x 150

TIMCO Masonry Joist Hangers A2 Stainless Steel - 47 x 150

  1. Product Code
    47150WMHS
  2. Barcode
    5022456320698
  3. Pack Quantity
    1 Each
£18.14 inc. VAT

Description

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

Approval BS 5628
Bearing mm 80
CE Standard Web BS EN 845-1:2013
Characteristic Value kN Eurocode5 6.7
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Description The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Eurocode 6
Height mm 140
Joist Size W x H mm 47 x 150
Material Austenitic Stainless Steel (A2-304)
No. of Nail Holes 3.75mm 6
Pack Dimensions L x W x H mm 80 x 47 x 140
Pack Weight kg 0.380
Product Code 47150WMHS
Safe Working Load kN 3.5
Service Class 3
Thickness mm 2.4
Width mm 47
