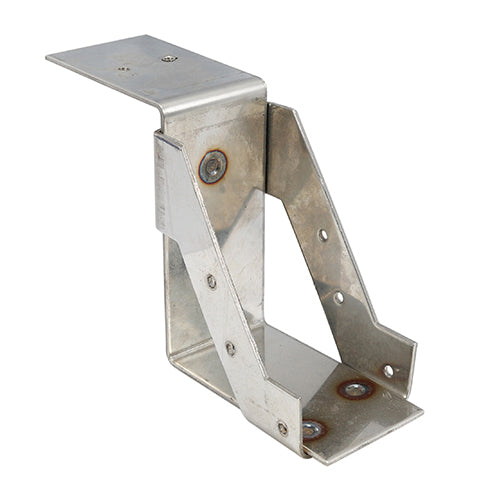

TIMCO Masonry Joist Hangers Galvanised - 47 x 100
-
- Product Code
- 47100WMHS
-
- Barcode
- 5022456320674
-
- Pack Quantity
- 1 Each
£17.45
inc. VAT
This product is currently unavailable.
Description
The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
| Approval | BS 5628 |
| Bearing mm | 80 |
| CE Standard Web | BS EN 845-1:2013 |
| Characteristic Value kN Eurocode5 | 6.7 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Description | The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. |
| Eurocode | 6 |
| Height mm | 100 |
| Joist Size W x H mm | 47 x 100 |
| Material | Austenitic Stainless Steel (A2-304) |
| No. of Nail Holes 3.75mm | 6 |
| Pack Dimensions L x W x H mm | 80 x 47 x 100 |
| Pack Weight kg | 0.340 |
| Product Code | 47100WMHS |
| Safe Working Load kN | 3.5 |
| Service Class | 3 |
| Thickness mm | 2.4 |
| Width mm | 47 |
