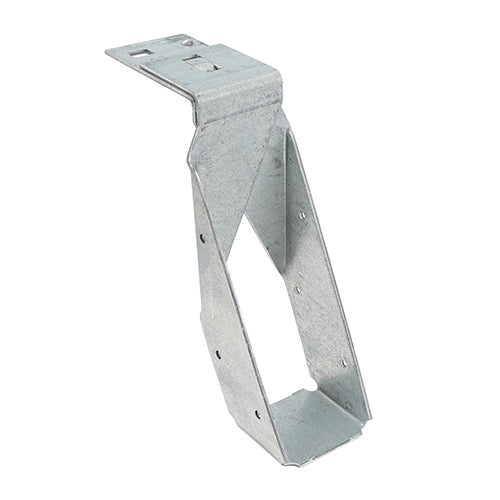

TIMCO Masonry Joist Hangers Galvanised - 47 x 175

TIMCO Masonry Joist Hangers Galvanised - 47 x 175

  1. Product Code
    47175MH
  2. Barcode
    5022456317384
  3. Pack Quantity
    1 Each
£2.81 inc. VAT

This product is currently unavailable.

Description

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.

Approval BS 5628
Bearing mm 75
CE Standard Web BS EN 845-1:2013
Characteristic Value kN Eurocode5 9.7
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Description The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
Eurocode 6
Finish Galvanised
Height mm 165
Joist Size W x H mm 47 x 175
Material Carbon Steel
No. of Nail Holes 3.75mm 6
Pack Dimensions L x W x H mm 75 x 47 x 165
Pack Weight kg 0.460
Product Code 47175MH
Safe Working Load kN 5.4
Service Class 2
Thickness mm 2.4
Width mm 47
