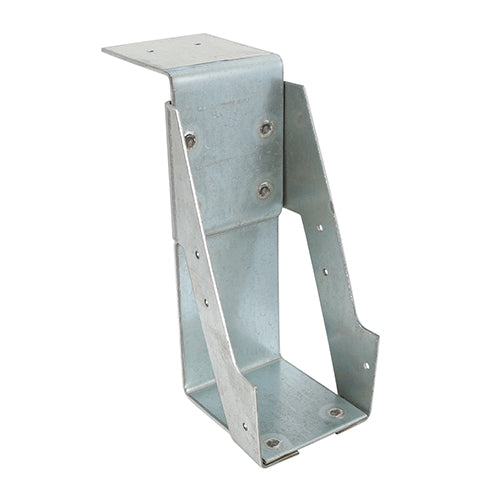

TIMCO Masonry Joist Hangers Galvanised - 75 x 200
-
- Product Code
- 75200WMH
-
- Barcode
- 5022456313270
-
- Pack Quantity
- 1 Each
£4.43
inc. VAT
This product is currently unavailable.
Description
The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
Approval | BS 5628 |
Bearing mm | 80 |
CE Standard Web | BS EN 845-1:2013 |
Characteristic Value kN Eurocode5 | 6.7 |
Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
Description | The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. |
Eurocode | 6 |
Finish | Galvanised |
Height mm | 190 |
Joist Size W x H mm | 75 x 200 |
Material | Carbon Steel |
No. of Nail Holes 3.75mm | 6 |
Pack Dimensions L x W x H mm | 190 x 75 x 80 |
Pack Weight kg | 0.720 |
Product Code | 75200WMH |
Safe Working Load kN | 3.5 |
Service Class | 2 |
Thickness mm | 2.4 |
Width mm | 75 |
