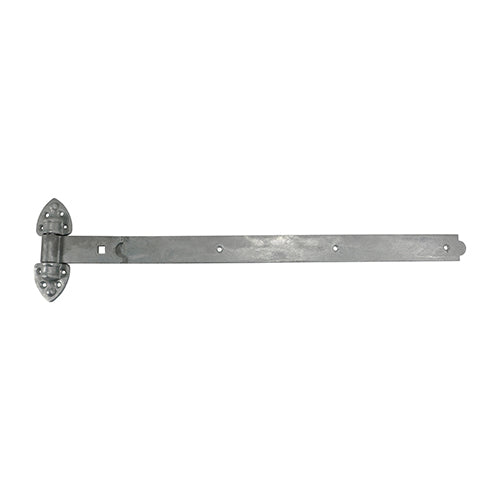

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 1200mm

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 1200mm

  1. Product Code
    HRH1200G
  2. Barcode
    5055893360804
  3. Pack Quantity
    1 Each
£77.80 inc. VAT

Description

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Band Length inch 48
Band Length mm 1200
Band Thickness mm 5.6
Band Width mm 50
Carriage Bolt Size mm M12 x 100
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Finish Hot Dipped Galvanised
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 26)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 26
No. of Nuts 2
No. of Screw Holes 30
No. of Washers 2
Nut Size mm M12
Nut Type Hex Full
Pack Dimensions L x W x H mm 152 x 30 x 1371
Pack Weight kg 7.200
Pin Dia. inch
Pin Dia. mm 19.0
Product Code HRH1200G
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M12
To Suit Gate Width mm 2400 - 3600
Washer Size mm M12
Washer Type Form A
