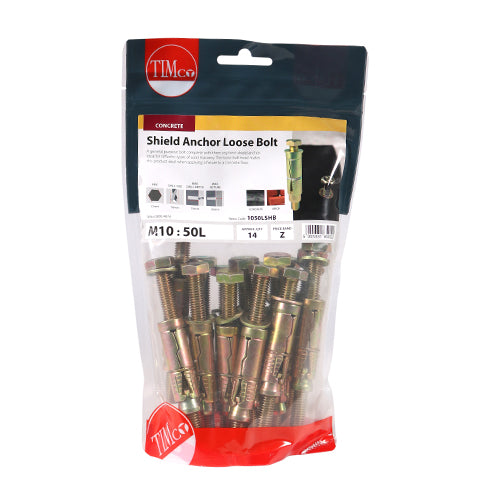

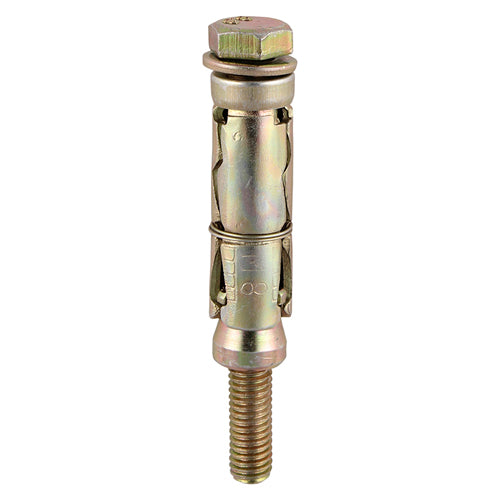

TIMCO Shield Anchors Loose Bolt Gold - M10:50L (M10 x 110) (14pcs)
-
- Product Code
- 1050LSHB
-
- Barcode
- 5055331850522
-
- Pack Quantity
- 14 Pieces
£10.38
inc. VAT
This product is currently unavailable.
Description
Ideal for fixing through the fixture once the shield has been installed into substrate.
| Bolt Length mm | 110 |
| Centre Spacing mm | 180 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Description | Ideal for fixing through the fixture once the shield has been installed into substrate. |
| Drill Hole Dia. mm | 16.0 |
| Edge Distance mm | 90 |
| Finish | Zinc & Yellow |
| Fixture Hole Diameter mm | 12.0 |
| Material | Carbon Steel |
| Max Fixture Thickness mm | 50 |
| Min Drill Hole Depth mm | 70 |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.450 |
| Point Type | B Point |
| Product Code | 1050LSHB |
| Shield Length mm | 60 |
| Size Thread Dia. x L mm | M10 x 110 |
| Socket Size mm | 17 |
| Substrates | Concrete, Brick, Stone |
| Thread Dia. mm | M10 |
| Thread Type | Metric |
