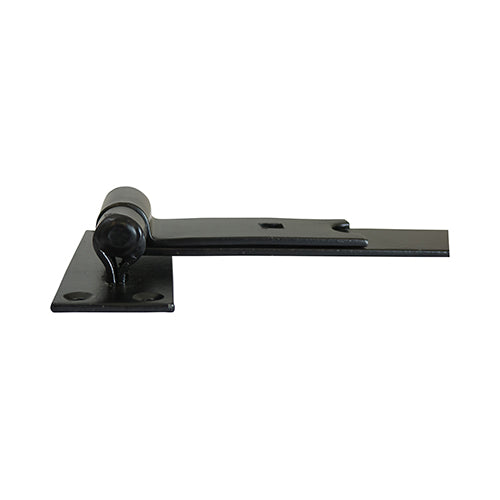

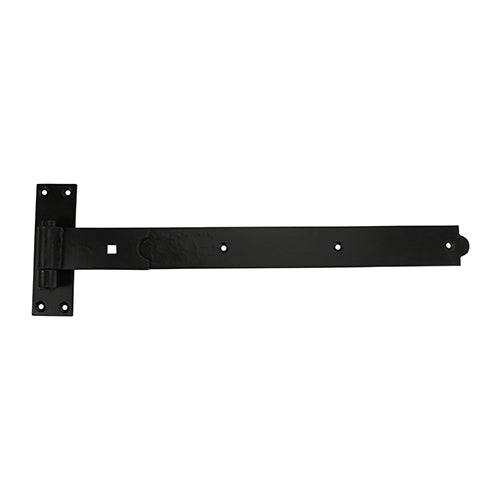

TIMCO Straight Band & Hook On Plates Hinges Black - 600mm
TIMCO Straight Band & Hook On Plates Hinges Black - 600mm
TIMCO Straight Band & Hook On Plates Hinges Black - 600mm
TIMCO Straight Band & Hook On Plates Hinges Black - 600mm

TIMCO Straight Band & Hook On Plates Hinges Black - 600mm

  1. Product Code
    HBS600B
  2. Barcode
    5055893360248
£24.14 inc. VAT

Description

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Band Length inch 24
Band Length mm 600
Band Thickness mm 5.4
Band Width mm 50
Carriage Bolt Size mm M10 x 100
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 6.0 x 40
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Finish Epoxy Black
Hook Plate Size L x W mm 160 x 50
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Material Carbon Steel
No. of Bolt Holes 2
No. of Carriage Bolts 2
No. of CSK Screws 14
No. of Nuts 2
No. of Screw Holes 14
No. of Washers 2
Nut Size mm M10
Nut Type Hex Full
Pack Dimensions L x W x H mm 178 x 30 x 610
Pack Weight kg 4.050
Pin Dia. inch
Pin Dia. mm 16.0
Product Code HBS600B
Rec Screw Dia. mm 6.0
Rec Screw Gauge imp. 12
To Fit Carriage Bolt Dia. mm M10
To Suit Gate Width mm 1200 - 1800
Washer Size mm M10
Washer Type Form A
