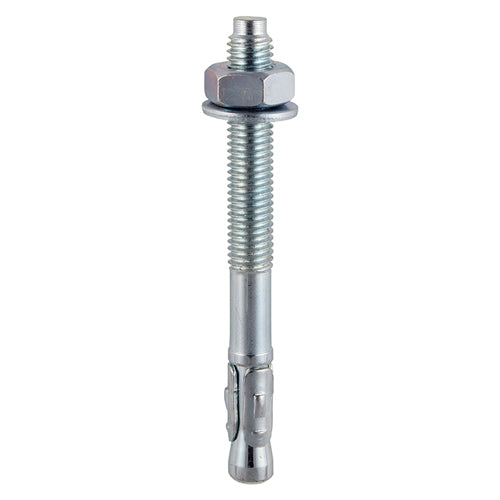

TIMCO Throughbolts Silver - M12 x 100 (12pcs)
-
- Product Code
- 12100TBB
-
- Barcode
- 5055331821157
-
- Pack Quantity
- 12 Pieces
£8.20
inc. VAT
This product is currently unavailable.
Description
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Description | A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight. |
| DIN Standard | DIN 125-A, DIN 934 |
| Drill Hole Dia. mm | 12.0 |
| Edge Distance mm | 75 |
| Finish | Zinc |
| Fixture Hole Diameter mm | 14.0 |
| Head Type | Chamfered |
| Included Items | M12 Hex Full Nuts & Form A Washers |
| Length mm | 100 |
| Material | Carbon Steel |
| Max Fixture Thickness mm | 25 |
| Min Drill Hole Depth mm | 60 |
| Nut Size mm | M12 |
| Nut Socket Size mm | 19 |
| Nut Type | Hex Full |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.100 |
| Product Code | 12100TBB |
| Size Thread Dia. x L mm | M12 x 100 |
| Substrates | Concrete |
| Thread Dia. mm | M12 |
| Thread Type | Metric |
| Washer Size mm | M12 x 24 |
| Washer Type | Form A |
