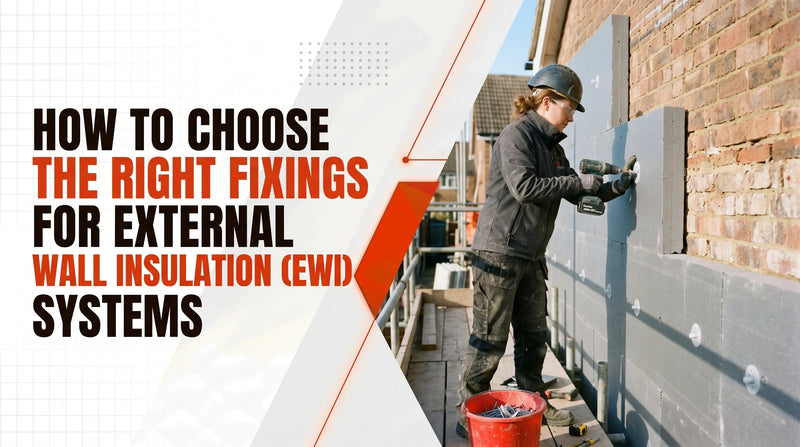

How to Choose the Right Fixings for External Wall Insulation (EWI) Systems
Not all insulation anchors work on all walls. The substrate, board type, thickness, and pull-out resistance all affect which EWI fixing is correct. This guide explains how to choose the right one.
What Is an EWI System and Why Do Fixings Matter?
External wall insulation (EWI) is a system where insulation boards are fixed directly to the outside face of a wall. A render or cladding finish is then applied over the top. It is one of the most effective ways to improve the thermal performance of an older solid-walled property.
EWI is widely used on UK homes that were built before cavity walls became standard. Solid brick and stone walls lose a lot of heat. Adding external insulation cuts that heat loss significantly.
The fixings hold the insulation boards to the wall. They also bear the long-term wind and gravity loads on the system. If the wrong fixing is used, or if too few fixings are installed, the boards can move, crack the render, or detach entirely. A failed EWI system is expensive to repair.
Choosing the correct insulation fixing is not a small decision. It affects how long the system lasts and whether it performs as designed.
Types of EWI Fixings and Anchors
There are two main types of EWI anchor used in UK wall insulation systems. They differ in how they are installed and in which substrates they perform best.
All EWI anchors used in the UK should be CE marked and have a current European Technical Assessment (ETA) or British Board of Agrément (BBA) certificate. This confirms the fixing has been tested for pull-out resistance and long-term durability in the substrate type stated on the certificate.
How the Substrate Affects Your Fixing Choice
The wall you are fixing into is the single biggest factor in choosing the right EWI anchor. The same anchor that performs well in solid engineering brick will give very low pull-out values in soft aerated concrete block.
| Substrate Type | Recommended Anchor Type | Notes |
|---|---|---|
| Solid clay brick | Hammer-fixed or screw-fixed plastic anchor | Dense substrate gives good pull-out values. Standard EWI anchors are suitable. |
| Dense aggregate block | Hammer-fixed or screw-fixed plastic anchor | Similar to brick. Check the block compressive strength before specifying. |
| Lightweight aerated block (e.g. Thermalite) | Screw-fixed plastic anchor | Hammer-fixed anchors can give inconsistent results in soft block. Screw-fixed anchors give higher and more reliable pull-out values. |
| Concrete | Hammer-fixed or screw-fixed plastic anchor | Good substrate. Ensure drill hole is clean and free of dust before insertion. |
| Rubble or mixed fill wall | Injected resin anchor | Unpredictable substrate. Resin injection gives the most reliable fixing in inconsistent material. |
| Soft limestone or sandstone | Injected resin anchor or specialist anchor | Pull-out values can be very low. A structural engineer or EWI system supplier should be consulted. |
On any project where the substrate is uncertain, carry out on-site pull-out tests before installing the full system. Testing a sample of anchors confirms actual pull-out values for that specific substrate. This is especially important on older solid-walled properties where the wall construction may be mixed or variable.
Choosing Fixings for EPS Boards
Expanded polystyrene (EPS) is the most widely used insulation board in UK EWI systems. It is lightweight, easy to cut, and accepts render well when primed and meshed correctly.
EPS is also relatively soft compared to PIR or mineral wool boards. The fixing head must be large enough to spread the load without pulling through the board. A small-headed nail or screw used directly in EPS will cut through the surface under load.
EPS board fixings are specifically designed for this. They have a wide circular or mushroom-shaped head, typically 60 mm in diameter or larger. This distributes the clamping force across a wider area of the board face, preventing pull-through.
- Use anchors with a thermal plastic head of at least 60 mm diameter for standard EPS boards
- The head must sit flush with or just below the board face, not proud of it
- Never over-drive the anchor. The head should compress the board surface slightly, not crater it
- For thicker EPS boards, use a longer anchor shank to maintain the required embedment depth in the substrate
- Always check the anchor is approved for use with EPS by the EWI system supplier
JALFT stocks a range of insulation fixings suitable for EPS boards and EWI systems on UK masonry walls. Each fixing is selected for performance in standard UK substrates.
Understanding Pull-Out Resistance
Pull-out resistance is the force required to pull an anchor out of the substrate. It is measured in kilonewtons (kN) and is the key performance figure for any EWI anchor.
The required pull-out resistance for an EWI system depends on:
- The weight of the insulation board and render system per square metre
- The wind-load zone the building sits in (higher buildings in exposed locations need higher values)
- The number of fixings used per board
- The substrate type and condition
EWI system manufacturers provide pull-out resistance requirements as part of their technical guidance. The anchor supplier must provide certified pull-out values for the specific substrate type. The two sets of data must match before installation begins.
How Many Fixings Per Board?
The number of fixings per board is not a single universal figure. It depends on the board size, the system weight, the building height, and the wind-load requirements for the location.
As a general starting point, most EWI system guidance specifies a minimum of 6 fixings per standard 1200 x 600 mm insulation board in a typical low-rise residential setting. Corner boards, boards at eaves level, and boards in exposed locations may require more.
Always refer to the EWI system manufacturer's fixing schedule. This is a layout diagram showing how many fixings are required and exactly where they should be positioned on each board size. Following the schedule is essential for warranty compliance and for meeting the load requirements of the system.
Fixings are typically placed in a pattern that covers the board perimeter and provides at least one central fixing. The perimeter fixings control the board edges. The central fixing controls deflection and keeps the board face flat against the wall.
On buildings over 8 metres, wind loads increase. More fixings per board are required at higher levels. Always check whether the standard domestic fixing schedule applies or whether a higher wind-load schedule is needed for the project.
Step-by-Step Installation Guide
The steps below cover the standard process for installing hammer-fixed or screw-fixed EWI anchors into a masonry substrate. Always follow the EWI system supplier's specific guidance alongside this general process.
Common Mistakes to Avoid
Most EWI fixing failures come from a small number of recurring errors. These are the ones seen most often on UK retrofit projects.
-
Using the wrong anchor for the substrate Hammer-fixed anchors in soft aerated block give low and inconsistent pull-out values. Always match the anchor type to the substrate. When in doubt, use a screw-fixed anchor and carry out on-site pull-out tests.
-
Not drilling to the correct depth The drill depth must account for the full board thickness plus the required substrate embedment. Drilling too shallow means the anchor sleeve sits partly in the insulation rather than fully in the substrate. This gives a much lower pull-out value.
-
Over-driving the anchor head Driving the nail or pin too hard compresses and damages the insulation around the head. This creates a cold spot and can crack the render finish over time. Drive until the head sits flush. Stop there.
-
Using too few fixings per board Reducing the fixing count to save time is one of the most common causes of EWI system failure. Always follow the system manufacturer's fixing schedule. Do not substitute your own judgement for the tested layout.
-
Not blowing out the drill hole Dust left in the drill hole stops the anchor sleeve from expanding correctly. It also reduces adhesion in resin-anchored systems. Always blow or brush out the hole before inserting the anchor.
-
Fixing into old render rather than the substrate If the wall has an existing render coat, the anchor must pass through it and embed into the masonry beneath. Fixing into render alone gives very low pull-out resistance and puts the entire EWI system at risk.
